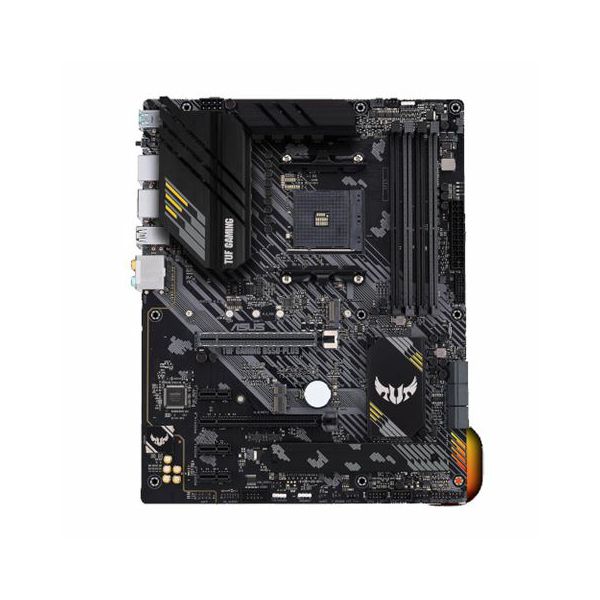

Matična ploča Asus TUF GAMING B550-PLUS, 0202337

TUF GAMING B550-PLUS, AM4, DDR4, Broj utora 4, 2133,2400,2666,2800,3000 ,3200,3333,3466,3600,3733,3866,4000,4133 MHz, PCIe 3.0 x16 1, PCIe x4 1, PCIe x1 3, SATA3 6, RAID 0,1, 8-kanalni audio, 1x 10/100/1000 Ethernet, Display Port 1, USB 2.0 2, ATX, M.2 1, USB 3.1 6
Osnovne karakteristike:
Socket: AM4
CPU: AMD Ryzen 3, AMD Ryzen 5, AMD Ryzen 7, AMD Ryzen 9
Chipset (N): AMD B550
Memorija: DDR4
Broj utora: 4
Max. memorije [GB]: 128
Takt memorije [MHz]: 2133, 2400, 2666, 2800, 2933, 3000, 3200, 3333, 3400, 3466, 3600, 3733, 3866, 4000, 4133

Utori:
AGP 4x/8x: n/a
PCI: n/a
PCIe 3.0 x16: 1
PCIe x16: n/a
PCIe x8: n/a
PCIe x4: 1
PCIe x1: n/a
PCI-X: n/a
PATA: n/a
SATA II: n/a
SATA3: 6

Ostale karakteristike:
RAID: 0, 1, 1+0

Stražnji panel:
Audio: 8-kanalni audio
Mreža: 1x 10/100/1000 Ethernet
Parallel: n/a
Serial: n/a
PS/2 mouse: n/a
PS/2 keyboard: n/a
D-sub: n/a
DVI: n/a
Display Port: 1
HDMI: 1
RJ45: n/a
USB 2.0: 6
USB 3.0: 0

Konektori:
S/PDIF Out: Y
4-pin ATX 12V Power: n/a
8-pin ATX 12V Power: Y
20-pin ATX Power: n/a
24-pin ATX Power: Y
Front panel audio: Y
Chasis Intrusion: n/a
CD Audio In: n/a
Chasis Fan Power: 3
CPU Fan Power: 1
Format ploče: ATX
WLAN connector: 1
Podrška za integrirani grafičk: N
SATA Express: n/a
M.2: 2
U.2: n/a
USB 3.1: 0
USB 3.1: 0
PCIe 4.0 x16: 1
USB 3.2: 8
PCIe 5.0 x16: 0
