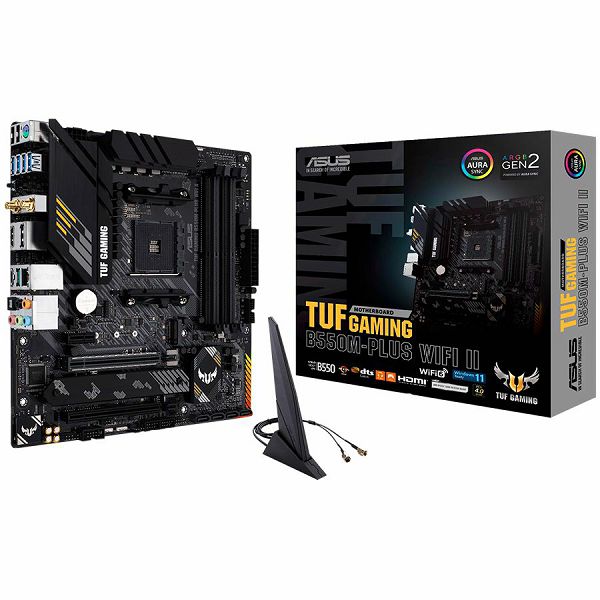

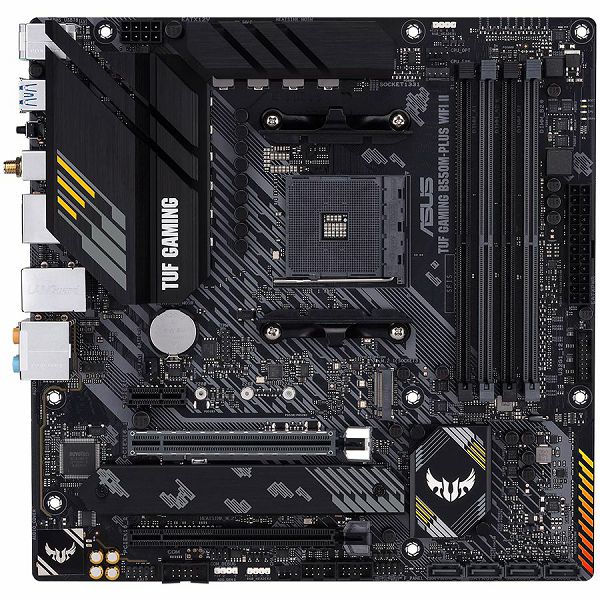

ASUS TUF GAMING B550M-PLUS WIFI II AM4 mATX gaming MB - AMD B550 4xDIMM DDR4 2xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet WiFi 6 + Bluetooth 1xDisplayPort 1xHDMI with Aura Sync RGB lighting support

All motherboards by ASUS are designed and tested to meet the highest quality standards. Responsive customer support and frequent BIOS and driver updates ensure that youre getting the fastest, most reliable performance - all the time.
Audio Data Width: 24-bit
, Audio Integrated: yes
, Audio Interface: 5 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM
, BIOS Type: AMI
, Bluetooth: Bluetooth 5.2
, Box Weight Brutto (kg): 8.69 kg
, Cable Included: 2 x SATA 6Gb/s Cables
, Chipset: AMD B550
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU Socket Standard: Socket AM4
, Data Link Protocol Supports: 2.5 Gbps
, Device Location: Integrated
, DisplayPort: 1
, EAN Code: 4711081305705
, Form Factor: Micro ATX
, HDMI: 1 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: I/O Shield Quick Start Guide
, Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)Storage Controller:PCIe 4.0 x4/SATA (1 x M.2 (Key M))Storage Controller:PCIe 3.0 x4/SATA (1 x M.2 (Key M))
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Mainboard Features: RGB LED
, Maximum Installable System Memory Storage Capacity: 128 GB
, Memory Features: Two DDR Channels Unbuffered
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
, Memory Type: DDR4 SDRAM
, Pack Height (mm): 68 mm
, Pack Length (mm): 275 mm
, Pack Weight Brutto (kg): 1.49 kg
, Pack Weight Netto (kg): 0.87 kg
, Pack Width (mm): 275 mm
, Package Type: Box
, Packs in Box: 10
, PCI Express 3.0 x1: 3
, PCI Express 3.0 x16: 2
, PCI Express 4.0 x16: 1
, Pieces in pack: 1
, Plug-in-card: Wi-Fi Controller:1 x M.2 (Key E)
, Provides Error Checking Method: ECC
, PS/2: 1
, S/PDIF-out Optical: 1 (TOSLINK)
, Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
, Supports Central Processor Unit: AMD Ryzen Series 3rd Generation AMD Ryzen Series 4th Generation AMD Ryzen Series 5th Generation
, USB 2.0: 2 (USB 2.0 (type A))
, USB 3.2 Gen 1: 4 (USB 3.2 (type A))
, USB 3.2 Gen 2: 1 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
, Wake up/Sleep: Wake on LAN
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty Validation Criteria: Serial Number
, Width (mm): 244 mm
, Wi-Fi Antenna: 1
, Wi-Fi: IEEE 802.11ac Wi-Fi 5IEEE 802.11ax Wi-Fi 6IEEE 802.11abgn Wi-Fi 4
