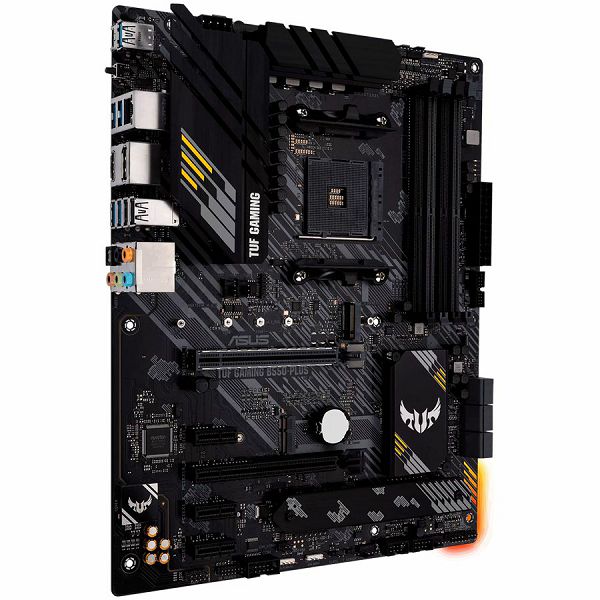

ASUS TUF GAMING B550-PLUS AM4 ATX gaming MB - AMD B550 4xDIMM DDR4 2xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet 1xDisplayPort 1xHDMI with Aura Sync RGB lighting support

Audio Chipset: Realtek ALC S1200A
, Audio Data Width: 24-bit
, Audio Integrated: yes
, Audio Interface: 5 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: UEFI PXE boot 256 Mb Flash ROM
, BIOS Type: AMI
, Bluetooth: Bluetooth 5.1
, Box Weight Brutto (kg): 1 kg
, Cable Included: 2 x SATA 6Gb/s Cables
, Chipset: AMD B550
, Compliant Audio Standards: DTS High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU Socket Standard: Socket AM4
, Data Link Protocol Supports: 2.5 Gbps
, Device Location: Integrated
, DisplayPort: 1
, EAN Code: 4718017749435
, Form Factor: Micro ATX
, HDMI: 1 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: I/O Shield User Guide Screws DVD Disc WiFi antenna
, Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)Storage Controller:PCIe 4.0 x4/SATA (1 x M.2 (Key M))Storage Controller:PCIe 3.0 x4/SATA (1 x M.2 (Key M))Wi-Fi Controller:Intel Wi-Fi 6 AX200 PCI-Express ()
, LAN Chipset: Realtek RTL8125B
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Mainboard Features: AMD 2-Way CrossFire TechnologyAura Sync RGB LED
, Maximum Installable System Memory Storage Capacity: 128 GB
, Memory Features: Unbuffered
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
, Memory Type: DDR4 SDRAM
, Pack Height (mm): 210 mm
, Pack Length (mm): 305 mm
, Pack Weight Brutto (kg): 8.25 kg
, Pack Weight Netto (kg): 5.26 kg
, Pack Width (mm): 240 mm
, Package Type: Box
, Packs in Box: 1
, PCI Express 3.0 x1: 1
, PCI Express 3.0 x16: 1
, Pieces in pack: 1
, Power Connectors Type: 24+8 pin
, Provides Error Checking Method: ECC
, PS/2: 1
, Retail Packaging Net Weight Carton: 1 kg
, Retail Packaging Net Weight Plastic: 1 kg
, S/PDIF-out Optical: 1
, Supports Central Processor Unit: AMD Ryzen Series
, USB 2.0: 2 (4-pin USB (type A))
, USB 3.2 Gen 1: 4 (USB 3.1 (type A))
, USB 3.2 Gen 2: 1 (USB 3.2 (type C)); 1 (USB 3.2 (type A))
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty Validation Criteria: Serial Number
, Width (mm): 244 mm
, Wi-Fi: IEEE 802.11aIEEE 802.11bIEEE 802.11gIEEE 802.11n Wi-Fi 4IEEE 802.11ac Wi-Fi 5IEEE 802.11ax Wi-Fi 6
