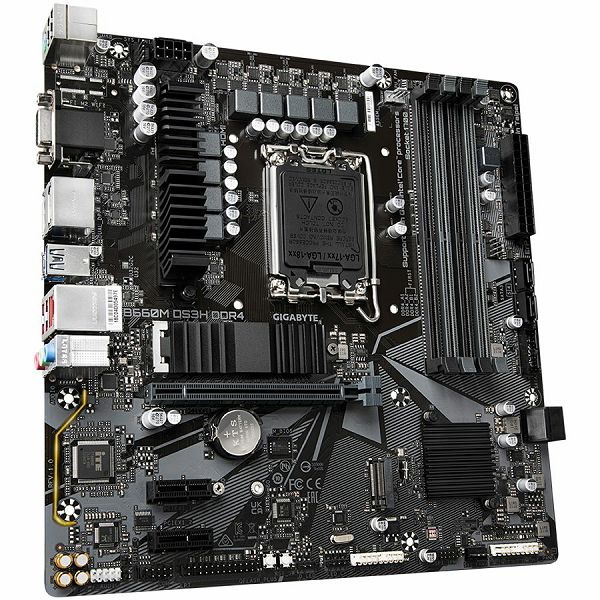

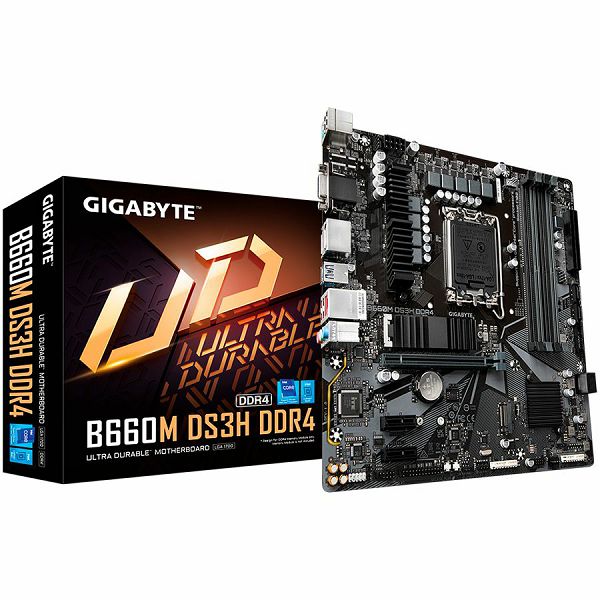

GIGABYTE Mainboard Desktop B66M DS3H DDR4 (Socket 1700, 4xDDR4 up to 128GB, 1x PCI-E x16x16, 2x PCI-E x1, 2x M.2, 4x SATA, 5x USB 3.2 Gen 1, 6x USB 2.0/1.1, 1x USB Type-C, 1x HDMI, 2x DP, 2.5Gbe LAN, , B660M DS3H DDR4

Audio Integrated: yes
, Audio Interface: 3 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: WfM 2.0 Support PnP 1.0a Support UEFI SMBIOS 2.7 Support DMI 2.7 Support ACPI 5.0 Support 256 Mb Flash ROM
, BIOS Type: AMI
, Box Weight Brutto (kg): 10 kg
, Chipset: Intel B660
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU podnožje: Socket 1700
, Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps
, Device Location: Integrated
, DisplayPort: 1
, Form Factor: Micro ATX
, HDMI: 1 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: Quick Start Guide Driver CD
, Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)Storage Controller:PCI Express 4.0 x4 (1 x M.2 (Key M))Storage Controller:PCIe 4.0 x4/SATA (1 x M.2 (Key M))
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Mainboard Features: Intel Optane Memory ReadyRGB Fusion
, Maximum Installable System Memory Storage Capacity: 128 GB
, Memory Features: Two DDR Channels Unbuffered Dual Rank Single Rank XMP
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3200MHz(PC4-25600)
, Pack Weight Brutto (kg): 0.939 kg
, Pack Weight Netto (kg): 0.98 kg
, Package Type: Retail
, Packs in Box: 10
, PCI Express 3.0 x1: 2
, PCI Express 4.0 x16: 1
, Pieces in pack: 1
, Power Connectors Type: 24+8+8 pin
, Provides Error Checking Method: non-ECC
, PS/2: 1
, Retail Packaging Net Weight Carton: 0.01 kg
, Retail Packaging Net Weight Plastic: 0.01 kg
, Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
, Supports Central Processor Unit: Intel 12th Gen Processors
, USB 2.0: 2 (USB 2.0 (type A))
, USB 3.2 Gen 1: 3 (USB 3.2 (type A))
, USB 3.2 Gen 2: 1 (USB 3.2 (type C))
, VGA: 1 (15-pin D-sub)
, Video Chipset: Intel HD Graphics
, Video Controller Integrated: yes
, Vrsta memorije: DDR4 SDRAM
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty validation Criteria: Serial Number
, Width (mm): 244 mm
