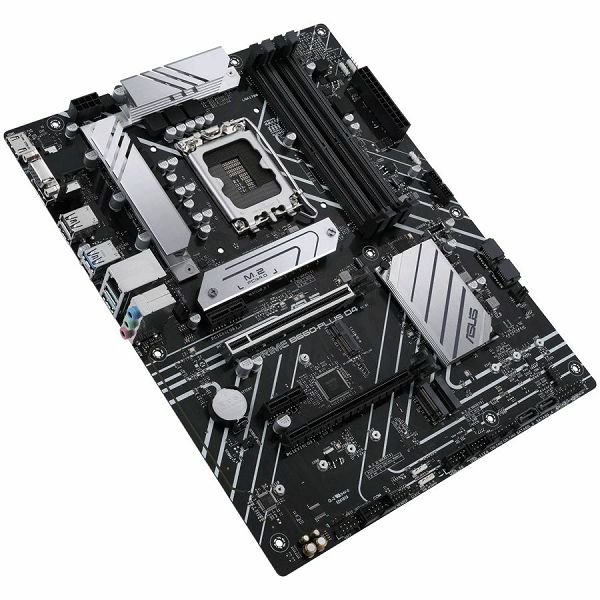

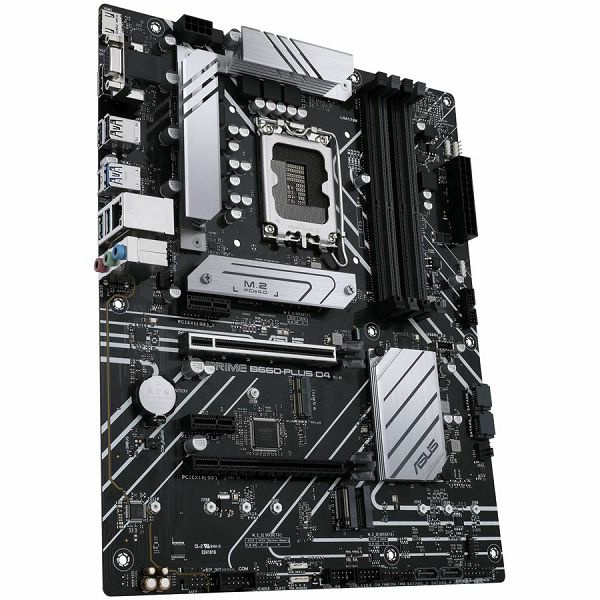

ASUS PRIME B660-PLUS D4 LGA1700 ATX MB - Intel B660 4xDIMM DDR4 3xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet 1xDisplayPort 1xD-Sub 1xHDMI with Aura Sync support

All motherboards by ASUS are designed and tested to meet the highest quality standards. Responsive customer support and frequent BIOS and driver updates ensure that youre getting the fastest, most reliable performance - all the time.
Architecture Features: Intel Turbo Boost Technology 2.0 Intel Turbo Boost Max Technology 3.0
, Audio Data Width: 24-bit
, Audio Integrated: yes
, Audio Interface: 3 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: ASUS CrashFree BIOS 3 ASUS Fan Xpert UEFI PXE boot 128 Mb Flash ROM ASUS EZ Flash 3
, BIOS Type: AMI
, Box Weight Brutto (kg): 0.75 kg
, Cable Included: 2 x SATA 6Gb/s Cables
, Chipset: Intel B660
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU Socket Standard: Socket 1700
, Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps
, Device Location: Integrated
, DisplayPort: 1
, EAN Code: 4711081523017
, Form Factor: ATX
, HDMI 2.0: 1 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: I/O Shield User Guide Screws Driver CD
, Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)Storage Controller:PCI Express 4.0 x4 (1 x M.2 (Key M))Storage Controller:PCI Express 4.0 x2 (1 x M.2 (Key M))
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Mainboard Features: Intel Optane Memory ReadyAura Sync RGB LED
, Maximum Installable System Memory Storage Capacity: 128 GB
, Memory Features: Two DDR Channels Unbuffered XMP OptiMem
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
, Memory Type: DDR4 SDRAM
, Pack Weight Brutto (kg): 0.75 kg
, Package Type: Box
, Packs in Box: 1
, PCI Express 3.0 x1: 1
, PCI Express 3.0 x16: 1
, PCI Express 4.0 x16: 1
, Pieces in pack: 1
, Power Connectors Type: 24+8 pin
, Provides Error Checking Method: non-ECC
, Software Included: Intel Rapid Storage Technology
, Support: Wi-Fi Controller:1 x M.2 (Key E)
, Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
, Supports Central Processor Unit: Intel 12th Gen Processors
, USB 2.0: 2 (USB 2.0 (type A))
, USB 3.2 Gen 1: 1 (USB 3.2 (type A))
, USB 3.2 Gen 2 x2: 1 (USB 3.2 (type C))
, USB 3.2 Gen 2: 2 (USB 3.2 (type A))
, VGA: 1 (15-pin D-sub)
, Wake up/Sleep: Wake on LAN
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty Validation Criteria: Serial Number
, Width (mm): 305 mm
