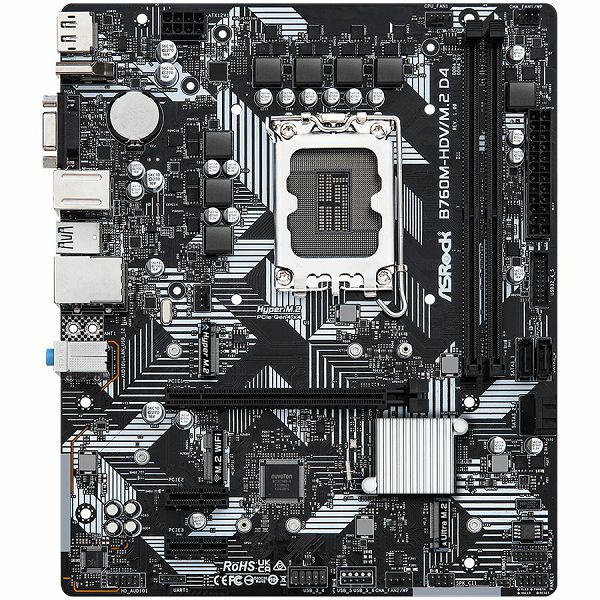

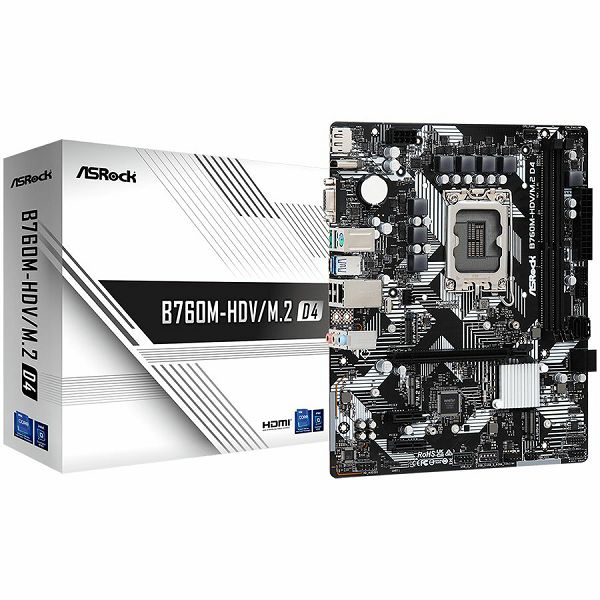

ASROCK MB Desktop B760M-HDV/M.2 D4 (S1700, 2x DDR4, 1x PCIe 4.0 x16, 2x PCIe 3.0 x1, 1x Hyper M.2 PCIe Gen4x4, 1x M.2 Ultra Gen3x4, 4x SATA3, 1x USB-C, 5x USB 3.2, 5x USB 2.0, 1xRJ-45 1Gbit, 1x VGA, 1, B760M-HDV/M.2 D4

Antenna: 2
, Architecture Features: Intel Turbo Boost Technology 3.0 Intel Hybrid Technology Intel Thermal Velocity Boost Intel Adaptive Boost Technology
, Audio Chipset: Realtek ALC887/ALC897
, Audio Integrated: yes
, Audio Interface: 3 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: UEFI 128Mb AMI UEFI Legal BIOS with GUI Support ASRockRack Instant Flash
, BIOS Type: AMI
, Box Weight Brutto (kg): 0.4 kg
, Cable Included: 2 x SATA Data Cables
, Chipset: Intel B760
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU podnožje: Socket 1700
, Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet
, Device Location: Integrated
, DisplayPort: 1
, EAN Code: 4710483942020
, Form Factor: Micro ATX
, HDMI: 1 (HDMI (Type A))
, Height (mm): 201 mm
, Included Accessories: I/O Shield Quick Start Guide Screws
, Integrated: Storage Controller:PCI Express 4.0 x4 (1 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)Storage Controller:PCIe 3.0 x4/SATA (1 x M.2 (Key M))
, LAN Chipset: Realtek RTL8111H
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Maximum Installable System Memory Storage Capacity: 64 GB
, Memory Features: Unbuffered XMP 2.0
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 2
, Memory Speed: 5333MHz(PC4-42600)
, Pack Weight Brutto (kg): 0.767 kg
, Pack Weight Netto (kg): 0.3 kg
, Package Type: Retail
, Packs in Box: 1
, PCI Express 3.0 x1: 2
, PCI Express 4.0 x16: 1
, Pieces in pack: 1
, Provides Error Checking Method: non-ECC
, PS/2: 1
, Retail Packaging Net Weight Carton: 0.3 kg
, Retail Packaging Net Weight Plastic: 0.3 kg
, Support: Wi-Fi Controller:1 x M.2 (Key E)
, Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
, Supports Central Processor Unit: Intel 12th Gen Processors Intel 13th Gen Processors Intel 14th Gen Processors
, USB 2.0: 2 (USB 2.0 (type A))
, USB 3.2 Gen 1: 1 (USB 3.2 (type C)); 3 (USB 3.2 (type A))
, VGA: 1 (15-pin D-sub)
, Video Chipset: Intel Iris Xe Graphics
, Video Controller Integrated: yes
, Vrsta memorije: DDR4 SDRAM
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty validation Criteria: Serial Number
, Width (mm): 244 mm
