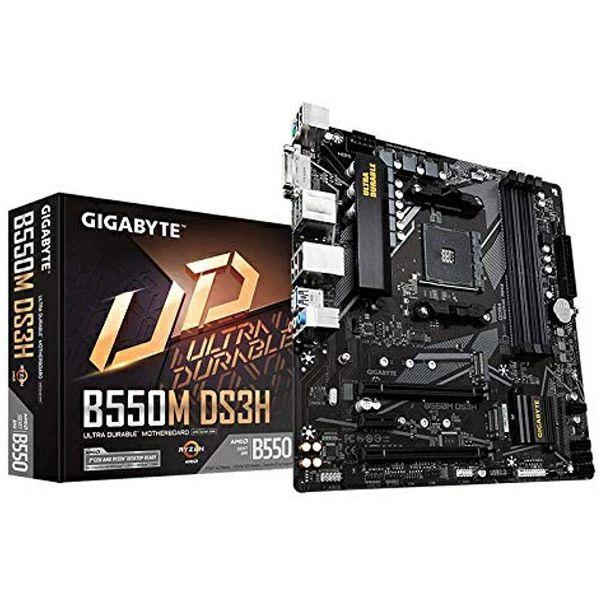

Gigabyte B550M DS3H , AM4, mATX, GAB55MDSH-00-G12

Model: Gigabyte B550M DS3H
Podržani procesori: AMD Socket AM4, support for: AMD Ryzen™ 5000 Series/ Ryzen™ 5000 G-Series/ Ryzen™ 4000 G-Series and Ryzen™ 3000 Series Processors
Chipset: AMD B550
Memorija: 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
Utori za proširenje: 1 x PCI Express x16 slot (PCIEX16) 1 x PCI Express x16 slot (PCIEX4) 1 x PCI Express x1 slot (PCIEX1)
I/O konektori: 1 x 24-pin ATX main power connector
1 x 8-pin ATX 12V power connector
1 x CPU fan header
2 x system fan headers
2 x addressable LED strip headers
2 x RGB LED strip headers
1 x CPU cooler LED strip/RGB LED strip header
2 x M.2 Socket 3 connectors
4 x SATA 6Gb/s connectors
1 x front panel header
1 x front panel audio header
1 x USB 3.2 Gen 1 header
1 x USB 2.0/1.1 header
1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
1 x serial port header
1 x Clear CMOS jumper
1 x Q-Flash Plus button Stražnji: 1 x PS/2 keyboard/mouse port
1 x DVI-D port
2 x SMA antenna connectors (1T1R)
1 x HDMI port
4 x USB 3.2 Gen 1 ports
4 x USB 2.0/1.1 ports
1 x RJ-45 port
3 x audio jacks
Grafika: 1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
Audio: Realtek® Audio CODEC High Definition Audio 2/4/5.1/7.1-channel
LAN: Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
Dimenzije: Micro ATX Form Factor; 24.4cm x 24.4cm
Ostalo: Support for Windows 11 64-bit Support for Windows 10 64-bit
Napomena: Više detalja o proizvodu možete pronaći ovdje.
