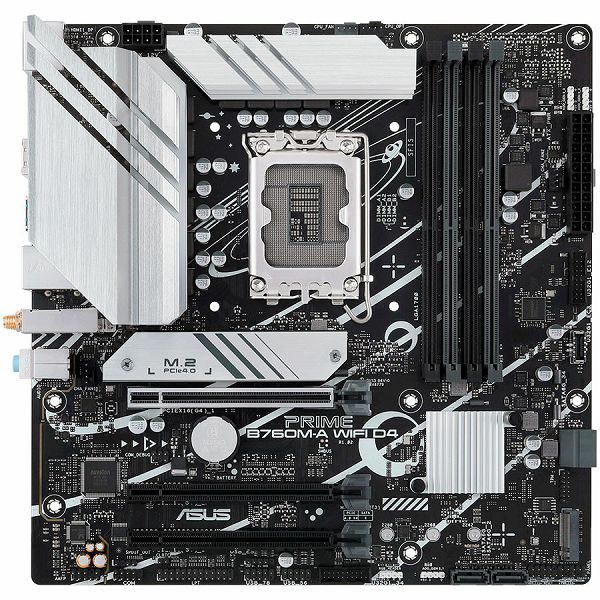

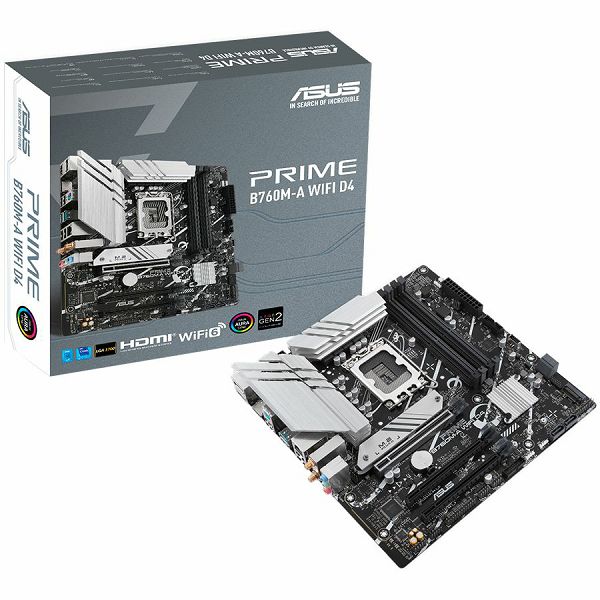

ASUS PRIME B760M-A WIFI D4 LGA1700 mATX MB - Intel B760 4xDIMM DDR4 2xM.2 4xSATA PCIe 4.0 2.5Gb Ethernet WiFi 6 + Bluetooth 1xDisplayPort 2xHDMI with Aura Sync support

Architecture Features: Intel Turbo Boost Technology 2.0 Intel® Rapid Storage Technology enterprise Intel Turbo Boost Max Technology 3.0
, Audio Data Width: 24-bit
, Audio Integrated: yes
, Audio Interface: 3 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: ASUS CrashFree BIOS 3 UEFI 128Mb EEPROM PXE boot ASUS EZ Flash 3
, BIOS Type: AMI
, Bluetooth: Bluetooth 5.2
, Box Weight Brutto (kg): 1.57 kg
, Cable Included: 2 x SATA 6Gb/s Cables
, Chipset: Intel B760
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU Socket Standard: Socket 1700
, Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet 2.5 Gbps
, Device Location: Integrated
, DisplayPort: 1
, EAN Code: 4711081982661
, Form Factor: Micro ATX
, HDMI: 2 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: I/O Shield User Guide WiFi antenna
, Integrated: Storage Controller:PCI Express 4.0 x4 (2 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10, Level 5SATA III-600 (4)Wi-Fi Controller:
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Maximum Installable System Memory Storage Capacity: 128 GB
, Memory Features: Two DDR Channels Unbuffered XMP OptiMem II
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
, Memory Type: DDR4 SDRAM
, Pack Weight Brutto (kg): 1.57 kg
, Pack Weight Netto (kg): 0.92 kg
, Package Type: Box
, Packs in Box: 1
, PCI Express 4.0 x16: 3
, Pieces in pack: 1
, Power Connectors Type: 24+8 pin
, Provides Error Checking Method: non-ECC
, PS/2: 1
, Retail Packaging Net Weight Carton: 0.1 kg
, Retail Packaging Net Weight Plastic: 0.1 kg
, Supported Operating System: Microsoft Windows 11 Microsoft Windows 10 64-bit
, Supports Central Processor Unit: Intel 12th Gen Processors Intel 13th Gen Processors
, USB 2.0: 4 (USB 2.0 (type A))
, USB 3.2 Gen 2: 2 (USB 3.2 (type A))
, Wake up/Sleep: Wake on LAN
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty Validation Criteria: Serial Number
, Width (mm): 244 mm
, Wi-Fi: 1
, Wi-Fi: IEEE 802.11ax Wi-Fi 6
