- Enterprise Security Gateway and Network Appliance with 10G SFP+
Overview

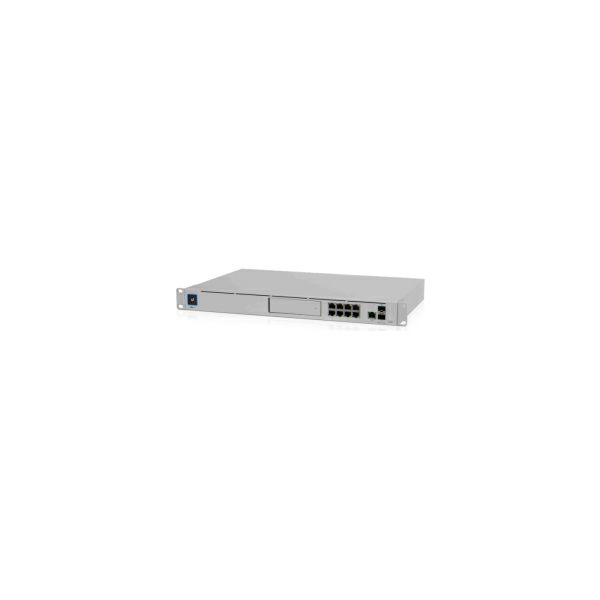

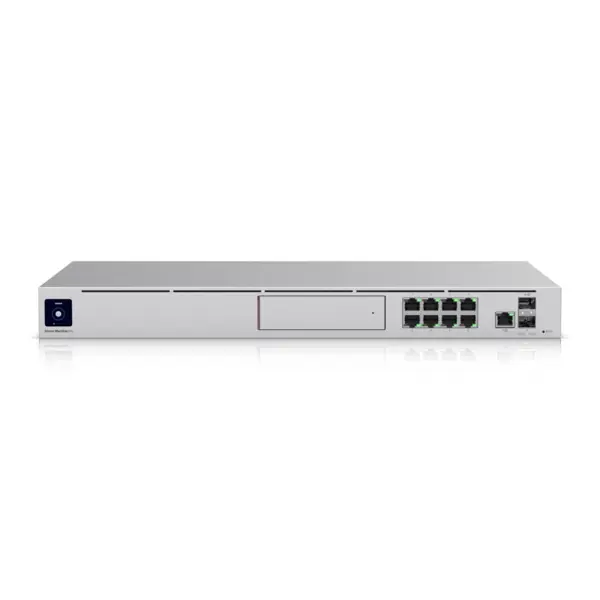

- The UniFi Dream Machine Pro is an all-in-one network appliance for a scalable network in an office, retail, or hospitality environment
- Powered by a fast 1.7 GHz quad-core processor, the UDM Pro combines multiple functions into a single device:
* Advanced Security Gateway with Built-in Switch
* Dual WAN Ports: One 10G SFP+ and One Gigabit RJ45
* One 10G SFP+ LAN Port
* Embedded Enterprise Software: UniFi Network
* 3.5" HDD Bay for NVR Storage (2.5" HDD also supported)
SOFTWARE
- The UDM Pro includes the UniFi Network Controller so you can manage your UniFi Switches and APs
- It can also run the UniFi Protect software for convenient monitoring and complete management of your camera surveillance system
- Video recordings are stored on the built-in NVR (hard drive not included) and can be easily accessed using the UniFi Protect mobile app
- Via remote access, you can securely view the recordings that are privately stored on the UDM Pro rather than a third-party server
REDUNDANCY
- The UDM Pro supports multiple redundancy options to ensure your network remains operational:
* Dual WAN with Failover: Supports dual internet/ISP connections with failover - if the primary WAN connection drops, it will automatically switch to the other WAN connection
* LTE Failover Redundancy: Supports the UniFi LTE device for automatic failover to the LTE cellular network. If the wired WAN fails, it will automatically switch to the UniFi LTE, keeping your network online
* Power Supply Redundancy and Failover: The UDM Pro supports our PSU failover system, the UniFi SmartPower RPS, model USP-RPS. If the internal power supply unit fails, the proprietary USP RPS interface acts to provide redundant power for backup
Additional Features
- Automatic QoS Top QoS priority is assigned to voice and video traffic
- VPN Server for Secure Communications A site-to-site VPN secures and encrypts private data communications traveling over the internet
- Convenient VLAN Support The UDM Pro can create virtual network segments for security and network traffic management
- Innovative Display The 1.3" touchscreen displays status information for easy monitoring and quick troubleshooting
Specifications
- Interfaces / Networking / Management:
* 8× 10/100/1000 RJ45 LAN Ports
* 1× 10/100/1000 RJ45 WAN Port
* 1× 1/10G SFP+ LAN Port
* 1× 1/10G SFP+ WAN Port
* Ethernet In-Band
* 1× Bluetooth BLE
- IDS/IPS Throughput 3.5 Gbps
- Processor: Quad ARM Cortex-A57 Core at 1.7 GHz
- System Memory: 4GB DDR4
- On-Board Flash Storage: 16GB eMMC
- Max Power Consumption: 33W
- Voltage Range: 100 to 240VAC
- Power Method:
* 1× Universal AC Input, 100-240VAC, 50/60 Hz
* 1× RPS DC Input
- Power Supply: Internal 50W/12V
- LEDs:
* HDD: Activity
* RJ45: Link/Speed/Activity
* SFP+: Link/Speed/Activity
- ESD/EMP Protection: Air: +/-16 kV, Contact: +/-12 kV
- Operating Temperature: -10C to 40C (14F to 104F)
- Operating Humidity: 5% to 95% Noncondensing
- Certifications: CE, FCC, IC
- Dimensions: 442.4 x 43.7 x 285.6 mm
- Weight: 3.9 kg
* With Brackets: 3.99 kg
