Features
- Gigabit WiFi for 8K Streaming - 5400 Mbps WiFi for faster browsing, streamings, and downloading, all at the same time
- Fully Featured Wi-Fi 6 - Equips with the top structure of 4T4R and HE160 on the 5 GHz band to enable a 4.8 Gbps ultra-fast connection
- Connect 100+ Devices - Supports MU-MIMO and OFDMA to reduce congestion and quadruple the average throughput
- Extensive Coverage - 6× antennas and Beamforming ensure broad coverage
- HomeShield - TP-Links premium security services keep your home network safe with cutting-edge features for network and IoT protection
- More Vents, Less Heat - Improved vents area unleashes the full power of the whole machine
- USB Sharing - 1× USB 3.0 port enables easy media sharing and private cloud building
- Easy Setup - Set up the router in minutes with the Tether app
Specifications
WIRELESS
- Standards: Wi-Fi 6
* IEEE 802.11ax/ac/n/a 5 GHz
* IEEE 802.11ax/n/b/g 2.4 GHz
- WiFi Speeds: AX5400
* 5 GHz: 4804 Mbps (802.11ax, HE160)
* 2.4 GHz: 574 Mbps (802.11ax)
- WiFi Range:
* 3 Bedroom Houses: 6× Fixed High-Performance Antennas, Multiple antennas form a signal-boosting array to cover more directions and large areas
* Beamforming: Concentrates wireless signal strength towards clients to expand WiFi range
* High-Power FEM: Improves transmission power to strengthen signal coverage
* 4T4R: Multiple streams in the same band strengthen the fault tolerance in transmission
- WiFi Capacity:
* High: Dual-Band, Allocate devices to different bands for optimal performance
* 4×4 MU-MIMO: Simultaneously communicates with multiple MU-MIMO clients
* OFDMA: Simultaneously communicates with multiple Wi-Fi 6 clients
* Airtime Fairness: Improves network efficiency by limiting excessive occupation
* DFS: Access an extra band to reduce congestion
* 6 Streams: Connect your devices to more bandwidth
- Working Modes: Router Mode, Access Point Mode
HARDWARE
- Processor: 1 GHz Dual-Core CPU
- Ethernet Ports: 1× Gigabit WAN Port, 4× Gigabit LAN Ports
- USB Support:
* 1× USB 3.0 Port
* Supported Partition Formats: NTFS, exFAT, HFS+, FAT32
* Supported Functions: Apple Time Machine, FTP Server, Media Server, Samba Server
- Buttons: Wi-Fi On/Off Button, Power On/Off Button, LED On/Off Button, WPS Button, Reset Button
- Power: 12 V = 2.5 A
SECURITY
- WiFi Encryption: WPA, WPA2, WPA3, WPA/WPA2-Enterprise (802.1x)
- Network Security:
* SPI Firewall, Access Control, IP & MAC Binding, Application Layer Gateway
* HomeShield Security: Real-Time IoT Protection, Malicious Site Blocker, Intrusion Prevention System, DDoS Attack Prevention, Home Network Scanner
- Guest Network: 1× 5 GHz Guest Network, 1× 2.4 GHz Guest Network
- VPN Server: OpenVPN, PPTP
SOFTWARE
- Protocols: IPv4, IPv6
- Service Kits: HomeShield
- OneMesh:
* OneMesh Supported
* Without replacing your existing devices or buying a whole new WiFi ecosystem, OneMesh helps you create a more flexible network that covers your entire home with TP-Link OneMesh products
- Parental Controls: HomeShield Parental Controls
* Custom Profiles, Professional Content Filter Library, Family Time, Bedtime, Off Time, Time Rewards, Family Online Time Ranking, Pause the Internet, Weekly and Monthly Reports
- WAN Types: Dynamic IP, Static IP, PPPoE, PPTP, L2TP
- Quality of Service: QoS by Device
- Cloud Service: Auto Firmware Upgrade, TP-Link ID, DDNS
- NAT Forwarding: Port Forwarding, Port Triggering, DMZ, UPnP, Virtual Server
- IPTV: IGMP Proxy, IGMP Snooping, Bridge, Tag VLAN
- DHCP: Address Reservation, DHCP Client List, Server
- DDNS: TP-Link, NO-IP, DynDNS
- Management: Tether App, Webpage
PHYSICAL
- Dimensions (W×D×H): 272.5×147.2×49.2 mm

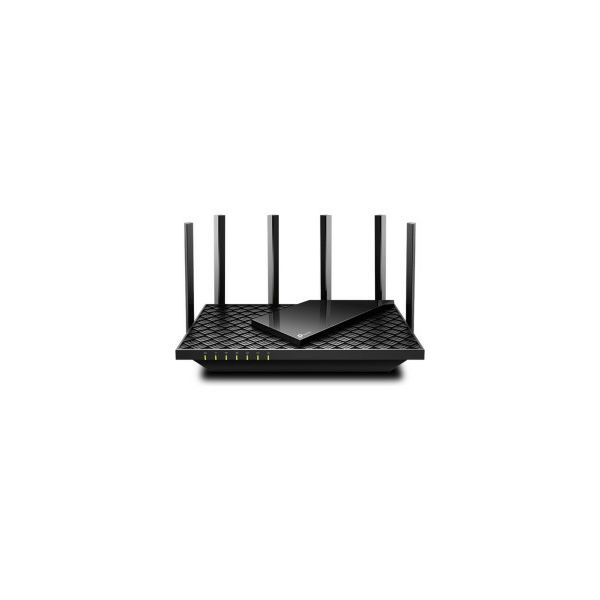

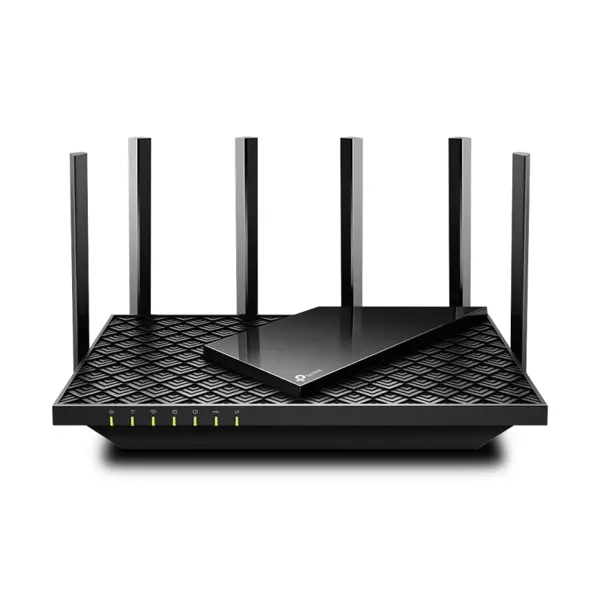

- Package Contents: Wi-Fi Router Archer AX72, Power Adapter, RJ45 Ethernet Cable, Quick Installation Guide
OTHER
- System Requirements: Internet Explorer 11+, Firefox 12.0+, Chrome 20.0+, Safari 4.0+, or other JavaScript-enabled browser
* Cable or DSL Modem (if needed)
* Subscription with an internet service provider (for internet access)
- Certifications: FCC, CE, RoHS
- Environment:
* Operating Temperature: 0C to 40C (32F to 104F)
* Storage Temperature: -40C to 70C (-40F to 158F)
* Operating Humidity: 10% - 90% non-condensing
* Storage Humidity: 5% - 90% non-condensing
TEST DATA
- WiFi Transmission Power
* CE: <20dBm (2.4GHz), <23dBm (5.15GHz - 5.35GHz), <30dBm (5.47GHz - 5.725GHz)
* FCC: <24dBm (5.25GHz - 5.35GHz & 5.47GHz - 5.725GHz), <30dBm (2.4GHz & 5.15GHz - 5.25GHz & 5.725GHz - 5.825GHz)
- WiFi Reception Sensitivity:
* 2.4GHz:
11ac VHT20 MCS0:-94.5dBm
11ac VHT20 MCS8:-72.5dBm
11ac VHT40 MCS0:-92.5dBm
11ac VHT40 MCS9:-69.5dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64.5dBm
11ax HE40 MCS0:-92.5dBm
11ax HE40 MCS11:-62dBm
* 5GHz:
11ac VHT20 MCS0:-97dBm
11ac VHT20 MCS8:-74dBm
11ac VHT40 MCS0:-95dBm
11ac VHT40 MCS9:-70dBm
11ac VHT80 MCS0:-91.5dBm
11ac VHT80 MCS9:-66dBm
11ac VHT160 MCS0:-86dBm
11ac VHT160 MCS9:-61dBm
11ax HE20 MCS0:-95dBm
11ax HE20 MCS11:-64dBm
11ax HE40 MCS0:-91.5dBm
11ax HE40 MCS11:-62dBm
11ax HE80 MCS0:-88dBm
11ax HE80 MCS11:-58dBm
11ax HE160 MCS0:-85.5dBm
11ax HE160 MCS11:-55dBm
