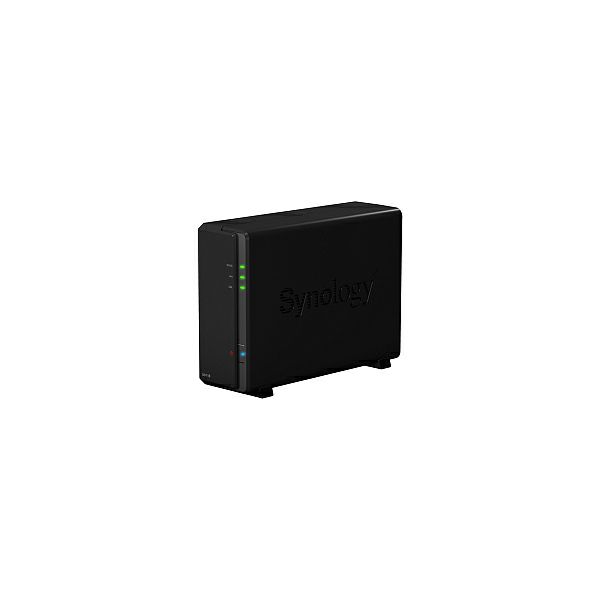

- High-performance 1-bay NAS for small office and home users
- Synology DS118 comes with a new 64-bit quad-core processor, delivering excellent data transfer speed and 10-bit 4K H.265 video transcoding on the fly
ULTIMATE FILE MANAGEMENT AND SHARING
- File Station is a web-based, fast and secure management tool built to allow easy, drag-and-drop operation without requiring any complex setup on Mac or PC
- Advanced search and filtering tools allow for easy organization and sharing of files with just a link. Supports SMB, FTP, AFP, NFS, WebDAV, compatible with any environment
SYNCHRONIZE FILES ACROSS YOUR DEVICES
- Cloud Station Suite provides real-time data synchronization across all your devices, such as computers, mobile devices, and other Synology NAS whenever a file is modified
- "Intelliversioning" keeps the most important file versions to better utilize storage space
EASY FILE ACCESS WITH QuickConnect
- Access files on your Synology NAS over the Internet without the hassle of setting up port forwarding rules, DDNS, or other complicated network settings
- QuickConnect allows you to connect via a simple customizable address (e.g. https://customID.quickconnect.to), so that you can instantly access media and work files on any Windows/Mac/Linux computer, laptop, or mobile device without additional charge
4K MULTIMEDIA SERVER
- Access and stream your favorite 4K content anywhere, anytime. DS118 supports 10-bit 4K H.265 online transcoding via Video Station and DS video, allowing 4K videos to be converted and played on your computers, mobile devices, or other media players that dont support Ultra HD formats
Hardware Specifications
CPU
- CPU Model: Realtek RTD1296
- CPU Architecture: 64-bit
- CPU Frequency: Quad Core 1.4 GHz
- Hardware Encryption Engine: Yes
- Hardware Transcoding Engine: 10-bit H.265 (HEVC), MPEG-4 Part 2, MPEG-2, VC-1; maximum resolution: 4K (4096 x 2160); maximum frame rate per second (FPS): 30
MEMORY
- System Memory: 1 GB DDR4
STORAGE
- Drive Bays: 1
- Compatible Drive Type:
* 3.5" SATA HDD
* 2.5" SATA HDD (with optional 2.5" Disk Holder)
* 2.5" SATA SSD (with optional 2.5" Disk Holder)
- Maximum Internal Raw Capacity: 12 TB (12 TB drive x 1) (Capacity may vary by RAID types)
- Maximum Single Volume Size: 108 TB
EXTERNAL PORTS
- RJ-45 1GbE LAN Port: 1
- USB 3.0 Port: 2
FILE SYSTEM
- Internal Drives: EXT4
- External Drives: EXT4, EXT3, FAT, NTFS, HFS+, exFAT
* exFAT Access is purchased separately in Package Center
APPEARANCE
- Size (H×W×D): 166×71×224 mm
- Weight: 0.7 kg
OTHERS
- System Fan: 60 mm x 60 mm x 1 pcs
- Fan Speed Mode:
* Full-Speed Mode
* Cool Mode
* Quiet Mode
* Low-power Mode
- Brightness adjustable front LED indicators: Yes
- Power Recovery: Yes
- Noise Level: 16.7 dB(A)
- Scheduled Power On/Off: Yes
- Wake on LAN/WAN: Yes
- Power Supply Unit / Adapter: 36W
- AC Input Power Voltage: 100V to 240V AC
- Power Frequency: 50/60 Hz, Single Phase
- Power Consumption:
* 9.4 W (Access)
* 4.22 W (HDD Hibernation)
- British Thermal Unit:
* 32.1 BTU/hr (Access)
* 14.41 BTU/hr (HDD Hibernation)
ENVIRONMENT TEMPERATURE
- Operating Temperature: 5C to 40C (40F to 104F)
- Storage Temperature: -20C to 60C (-5F to 140F)
- Relative Humidity: 5% to 95% RH
DSM Specifications
STORAGE MANAGEMENT
- Maximum Internal Volume Number: 1
- Maximum iSCSI Target Number: 10
- Maximum iSCSI LUN: 10
- SSD TRIM: Yes
- Supported RAID Type: Basic
FILE SHARING CAPACITY
- Maximum Local User Accounts: 2048
- Maximum Local Groups: 256
- Maximum Shared Folder: 256
- Maximum Shared Folder Sync Tasks: 2
- Maximum Concurrent CIFS/AFP/FTP Connections: 200
- Windows Access Control List (ACL) Integration: Yes
- NFS Kerberos Authentication: Yes
- Log Center: Yes
- Syslog Events per Second: 100
Add-on Packages
- Chat: Yes
- Maximum Users: 500
- Cloud Station Server: Yes
- Maximum Number of Concurrently Connected Devices: 200
- Maximum Number of Synced Files (ext4): 100.000 / single file reaction time 617 ms
- Download Station: Yes
- Maximum Concurrent Download Tasks: 30
- exFAT Access (optional): Yes
- Media Server: Yes
- DLNA Compliance: Yes
- Office: Yes
- Maximum Users: 100
- Maximum Simultaneous Editing Users: 30
- Surveillance Station: Yes
- Maximum IP cam (Licenses required): 15 (including 2 Free License)
- Total FPS (H.264):
* 450 FPS @ 720p (1280×720)
* 180 FPS @ 1080p (1920×1080)
* 110 FPS @ 3M (2048×1536)
* 80 FPS @ 5M (2591×1944)
* 40 FPS @ 4K (3840×2160)
- Total FPS (H.265):
* 450 FPS @ 720p (1280×720)
* 450 FPS @ 1080p (1920×1080)
* 210 FPS @ 3M (2048×1536)
* 120 FPS @ 5M (2591×1944)
* 60 FPS @ 4K (3840×2160)
- Total FPS (MJPEG):
* 210 FPS @ 720p (1280×720)
* 70 FPS @ 1080p (1920×1080)
* 50 FPS @ 3M (2048×1536)
* 30 FPS @ 5M (2591×1944)
- Video Station: Yes
- Video Transcoding: 4K Group 3
- Maximum Transcoding Channel Number:
* 1 channel, 30 FPS @ 4K (4096 x 2160), H.265 (HEVC), 10-bit or
* 1 channel, 30 FPS @ 1080p (1920×1080), H.264 (AVC)/H.265 (HEVC)/MPEG-4 Part 2 (XVID, DIVX5)/MPEG-2/VC-1
- VPN Server: Yes
- Maximum Connections: 5
Environment & Packaging
- Environment: RoHS Compliant
- Packaging Content:
1× Main Unit
1× Accessory Pack
1× AC Power Adapter
1× RJ-45 LAN Cable
1× Quick Installation Guide
- Optional Accessories:
* Surveillance Device License Pack
* Disk Holder: Type C
* VS360HD
* VS960HD
