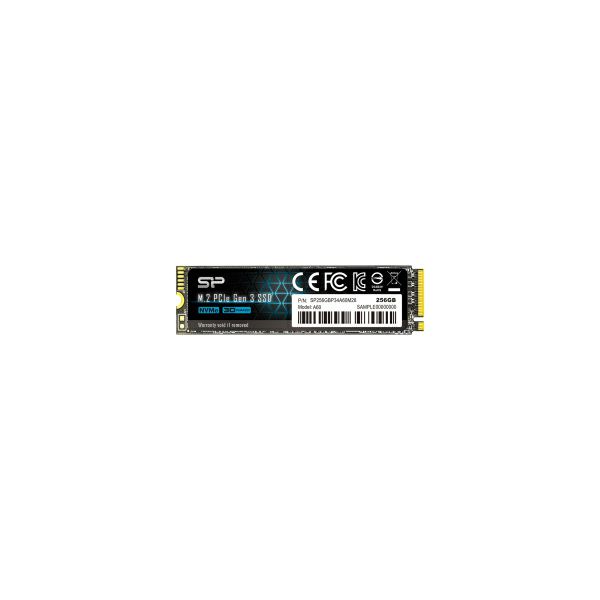

A FUNDAMENTAL PCIe Gen3x4 THAT GOES FURTHER
- The P34A60 is an affordable storage solution that doesnt skimp on performance
- Its designed for novice users, DIY system builders, purpose-built system manufacturers, and simply those who are looking to upgrade their PC
- But with a PCIe Gen3x4 interface, which means four lanes are used for transmitting and receiving data simultaneously, read speeds up to 2200 MB/s, and write speeds up to 1600 MB/s, this SSD is anything but basic
NVMe 1.3 + HMB = OPTIMUM PERFORMANCE
- The P34A60 supports NVMe 1.3, which demands better performance vectors than AHCI (Advanced Host Controller Interface), including scalable bandwidth, increased IOPS, and low latency
- In addition, HMB (Host Memory Buffer) architecture, which allows the host driver to allocate system memory (RAM) for exclusive use by the SSD, results in higher efficiency
- Its this teamwork that provides optimum performance
YOUR DATA IN GOOD HANDS
- The P34A60 is engineered with LDPC (Low-Density Parity Check) coding, a powerful error correction code (ECC) algorithm, to keep data secure
- Furthermore, End-To-End (E2E) data protection, to ensure that accessed and retrieved data are correct from start to finish, and a RAID engine, which provides an acceptable level of fault tolerance, work to enhance data integrity for greater reliability and stability
A SYSTEM UPGRADE WITH ROOM FOR MORE
- With an M.2 2280 (80mm) form factor, the P34A60s compact size allows for easy installation in laptops, small form factor PC systems, and some ultrabooks
- And with up to a massive 2TB capacity option, its an easy upgrade that can greatly expand your systems storage potential while also saving space for other components
Features
- PCIe Gen 3x4 interface with read speeds up to 2200MB/s and write speeds up to 1600MB/s
- LDPC (Low-Density Parity Check) error correction code (ECC) technology, End-To-End (E2E) data protection, and RAID engine for enhanced data integrity and stability
- Supports NVMe 1.3, Host Memory Buffer (HMB), and SLC Cache to deliver high and efficient performance
- Small form factor M.2 2280 (80mm) allows for easy installation in laptops, small form factor PC systems, and some ultrabooks
Specifications
- Capacity: 256GB
- Dimensions: 22×80×3.5 mm
- Weight: 8 g
- Interface: PCIe Gen3x4
- Performance Read (max.): up to 2200 MB/s
- Performance Write(max.): up to 1600 MB/s
- MTBF: 2.000.000 hours
- Operating Temperature: 0C - 70C
- Shock Resistance Test: 1500G/0.5ms
- Certification: CE, FCC, BSMI, Green dot, WEEE, RoHS, KCC
- System Requirement: Computer with M.2 slots supporting PCIe interface and one of the following operating systems: Windows 8.1 or Windows 10
