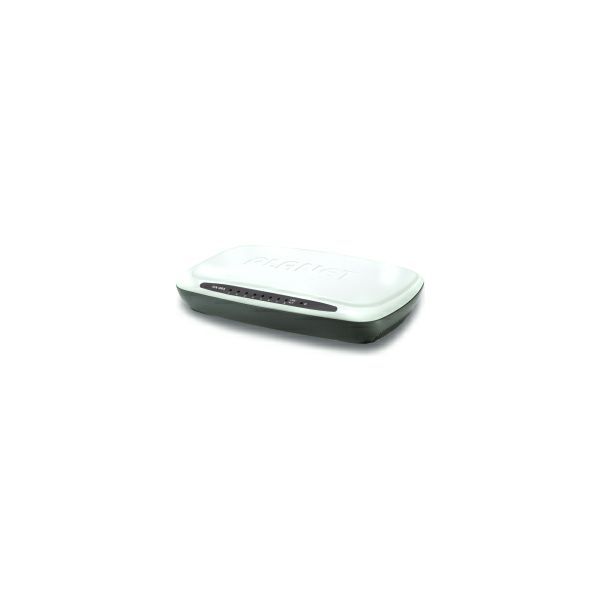

PLANET preklopnik (Switch) 8-port 10/100Base-TX , SW-804

Key Features
- 8-Port 10/100Mbps TP interfaces
- Complies with IEEE 802.3 10Base-T, IEEE 802.3u 100Base-TX
- IEEE 802.3x flow control for full duplex operation and Backpressure for half duplex operation
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Supports 1K absolute MAC address
- Supports to handle up to 1552bytes packet
- Automatic address learning and address aging
- Supports Automatic MDI / MDI-X function
- Full / Half-Duplex capability on each TX port
- LED indicators for simple diagnostics and management
- FCC Class B, CE compliant

SPECIFICATIONS

HARDWARE SPECIFICATION
- Network Connector: 8-port RJ-45 for 10/100Base-TX
- Switch Throughput: 1.19Mpps
- Switch Fabric: 1.6Gbps
- MAC Address: 1K MAC address table with Auto learning function
- Shared Buffer: 768K
- Power Requirement: 9V DC, 700mA
- Operating Environment: 0-50 Degree C, 5%-95% RH
- Storage Environment: -20-70 Degree C, 5%-95% RH
- Dimensions (W×D×H): 184×110×30 mm

SWITCH SPECIFICATION
- Switch Architecture: Store-and-Forward
- Flow Control: IEEE 802.3x full duplex operating and flow control

STANDARD COMPLIANCE
- Network Standard:
* IEEE 802.3 10Base-T
* IEEE 802.3u 100Base-TX
* IEEE 802.3x Flow Control and Back pressure
- EMI: FCC Class B, CE
