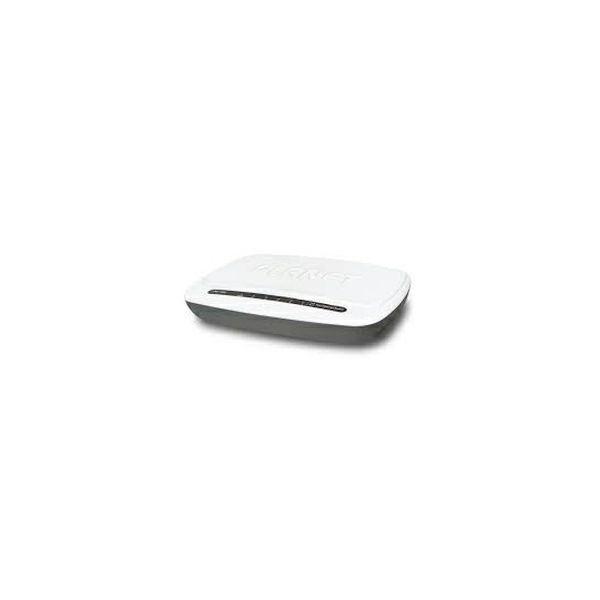

PLANET preklopnik (Switch) 5-port 10/100Base-TX, SW-504

Key Features
- Comply with IEEE 802.3, 10Base-T, IEEE 802.3u, 100Base-TX
- 5-port 10/100Mbps Auto-Negotiation ports - 10/20Mbps, 100/200Mbps Auto-sensing
- Compact size design for wall mount or desktop placement
- High performance Store-and-Forward Switching Architecture
- Runt and CRC filtering
- Flow control (Back Pressure) supports in half-duplex mode
- 1K MAC Address Table, automatically learning and aging
- LED indicators array for easy diagnostic, troubleshooting
- Plug-and-Play Installation
- Auto-MDI/MDIX on each port

Hardware Specification
- Network Connector: 5-port RJ-45 for 10/100Base-TX
- Switch Throughput: 0.74Mpps
- Switch Fabric: 1Gbps
- MAC Address: 1K MAC address table with Auto learning function
- Shared Buffer: 384K
- Power Requirement: 9V DC, 700mA
- Operating Environment: 0 - 50 Degree C, 5% - 95% RH
- Storage Environment: -20 - 70 Degree C, 5% - 95% RH
- Dimension (W×D×H ): 184×110×30 mm
Switch Specification
- Switch Architecture: Store-and-Forward
- Flow Control: IEEE 802.3x full duplex operating and flow control
Standard Compliance
- Network Standard:
* IEEE 802.3 10Base-T
* IEEE 802.3u 100Base-TX
* IEEE 802.3x Flow Control and Back pressure
- EMI: FCC Class B, CE
