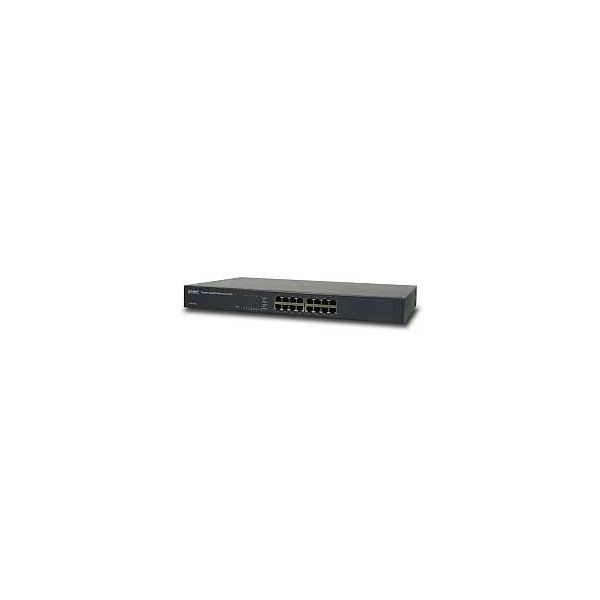

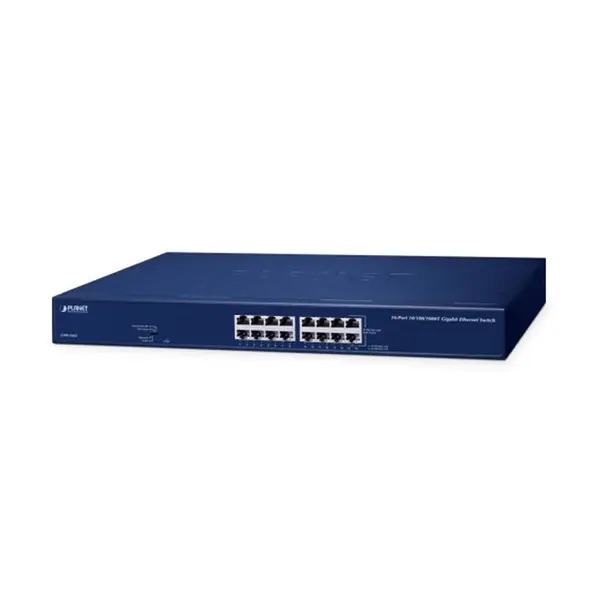

PLANET Gigabit preklopnik (Switch) 16-port 10/100/1000Mbps, GSW-1601

Key Features
- Complies with IEEE802.3, 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T
- 16-Port 10/100/1000Mbps Gigabit Ethernet ports
- Features Store-and-Forward mode with wire-speed filtering and forwarding rates
- Hardware based 10/100Mbps, half/full duplex and 1000Mbps full duplex mode, flow control and auto-negotiation
- IEEE802.3x flow control for full duplex operation and backpressure for half duplex operation
- Integrated address look-up engine, support 4K/8K absolute MAC addresses
- Provide 272KB buffer memory
- 9K Jumbo packet support
- Automatic address learning and address aging
- Supports Auto MDI/MDI-X function
- Support CSMA/CD protocol
- 100~240VAC, 3.0A, 50~60Hz universal Power input
- FCC, CE class A compliant

SPECIFICATION

Hardware Specification
- Network Ports: 16-Port 10/100/100Mbps RJ-45 with Auto-MDI/MDI-X
- Switch Processing Scheme: Store-and-Forward
- Switch fabric: 32Gbps
- Throughput (packet per second): 23.8Mbps
- Address Table: 8K Entries
- Share data Buffer: 272KB
- Flow Control: Back pressure for half duplex, IEEE 802.3x Pause Frame for full duplex
- Dimension (W×H×D): 440×44×120 mm
- Weight: 1.6 KG
- Power Requirement: 100~240 VAC, 3.0A, 50-60 Hz
- Power Consumption: 30 watts, 102BTU
- Temperature
* Operating: 0~50 degree C
* Storage -40~70 degree
- Humidity Operating: 10% to 90%, Storage: 5% to 95% (Non-condensing)
Standards Conformance
- Regulation Compliance: FCC Part 15 Class A, CE
- Standards Compliance
* IEEE 802.3 (Ethernet)
* IEEE 802.3u (Fast Ethernet)
* IEEE 802.3ab(Gigabit Ethernet)
* IEEE 802.3x (full-duplex flow control)
