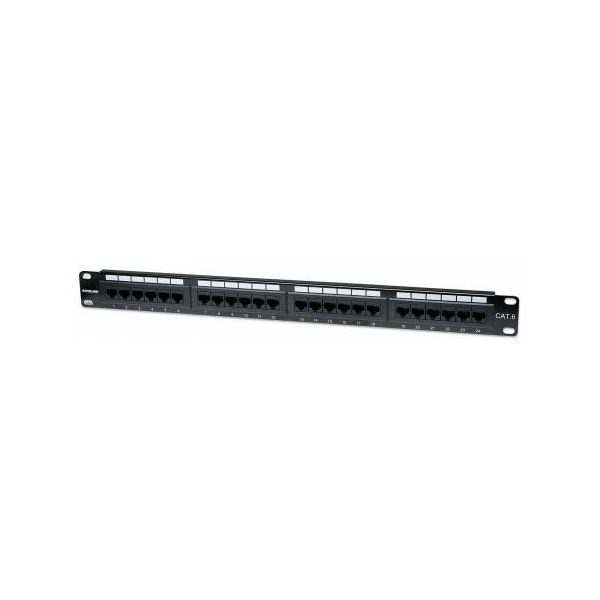

Intellinet prespojni UTP panel Cat.6 24-portni 1U 19", crni, 520959

•Solid and reliable terminations for copper cabling featuring a minimum of 3 mm 50 micro-inch gold-plated jack contacts •Compatible with both 110 and Krone punch-down tools •Supports 22 to 26 AWG stranded and solid wire •For use with unshielded twisted pair (UTP) Cat6 network cable •Ideal for Ethernet, Fast Ethernet and Gigabit Ethernet network applications •Connects 24 RJ-45 ports to a network •Occupies 1U rack height •Meets 19" rackmount standards Standards: •IEEE 802.3 (10Base-T Ethernet) •IEEE 802.3u (100Base-TX Fast Ethernet) •IEEE 802.3ab (1000Base-T Gigabit Ethernet) Certifications •UL listed •RoHS compliant Environmental: •Dimensions: 482 mm (W) x 43 mm (H) x 48 mm (D) (19 x 1.7 x 1.9 in.) •Horizontal distance between left and right mounting holes: 465 mm (18.3 in.) •Vertical distance between top and bottom mounting holes: 31.8 mm (1.25 in.) •Weight: 0.76 kg (1.67 lbs.) •Operating temperature: -40 – 80°C (-40 – 176°F) Package Contents •Cat6 Patch Panel •4 mounting screws •Quick start guide
Osnovne karakteristike:
Tip panela: UTP
Broj portova: 24
Konektori: RJ45
