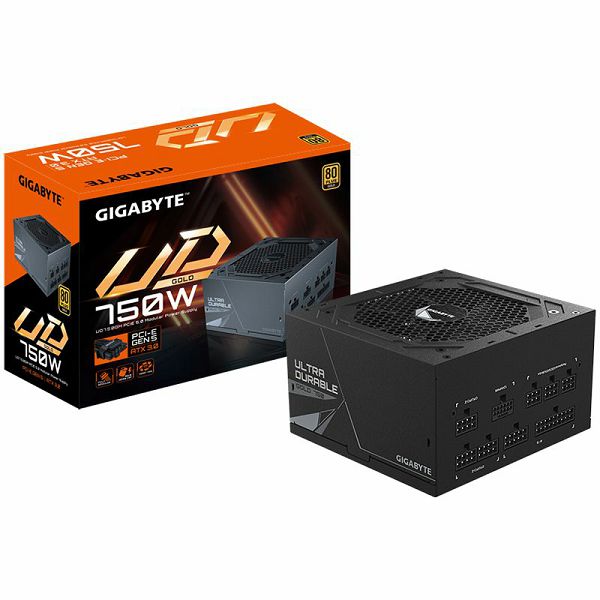

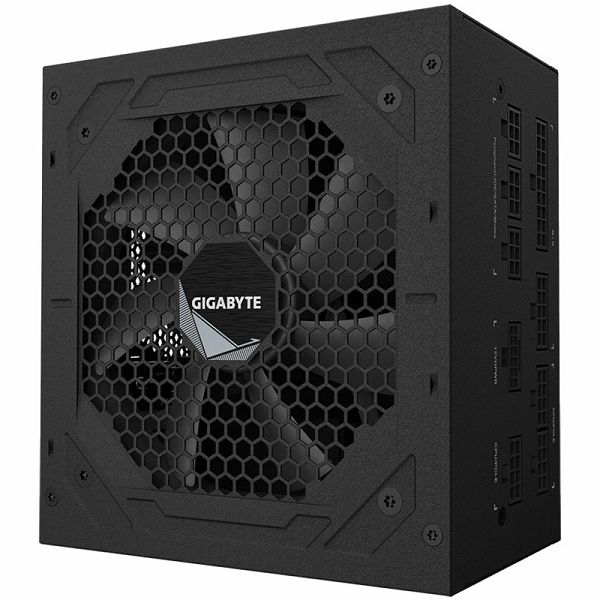

GIGABYTE UD750GM PG5 Power Supply 750W, PCIe Gen5 16Pin, Modular, 80 PLUS Gold, Japanese capacitors, 120mm smart control fan, EU plug, GP-UD750GM PG5

+12V: 62.5 A (750 W)
, +3.3V: 20 A (62.5 W)
, +5V: 20 A (62.5 W)
, +5VSB: 3 A (15 W)
, -12V: 0.3 A (3.6 W)
, 16-pin PCI Express 5.0 Connector: 1
, 20+4-pin Main Connector: 1
, 4/8-pin +12V Power Connector: 2
, 4-pin Floppy Drive Connector: 1
, 4-pin Peripheral Power Connector: 3
, 6/8-pin PCI Express Connector: 4
, 80 Plus Certification: 80 Plus Gold
, Box Weight Brutto (kg): 1 kg
, Circuit Protection: Over Voltage Undervoltage Over Temperature Over Current Short Circuit Protection Over Power
, Depth (mm): 150 mm
, EAN Code: 4719331553609
, Efficiency: 90%
, External Color: Black
, Fan Diameter: 120 mm
, Fans Installed Quantity: 1
, Height (mm): 86 mm
, Included Accessories: Quick Start Guide
, Input Frequency: 50/60 Hz
, Input Voltage: AC 100-240 V
, Material: Metal
, Maximum Output Power: 750 W
, Modular Power Supply: Yes
, Pack Weight Brutto (kg): 1 kg
, Pack Weight Netto (kg): 0.8 kg
, Package Type: Retail
, Packs in Box: 1
, Pieces in pack: 1
, Power Adapter and Power Supply Features: Active PFC
, Power Device Location: Plug-in-module
, Power Device Type: Power Supply
, Rated Input Current: 12 A
, Retail Packaging Net Weight Carton: 0.1 kg
, Retail Packaging Net Weight Plastic: 0.1 kg
, S-ATA Connector: 8
, Warranty Products Returnable: Yes
, Warranty Term (month): 60 month(s)
, Warranty validation Criteria: Serial Number
, Width (mm): 140 mm
