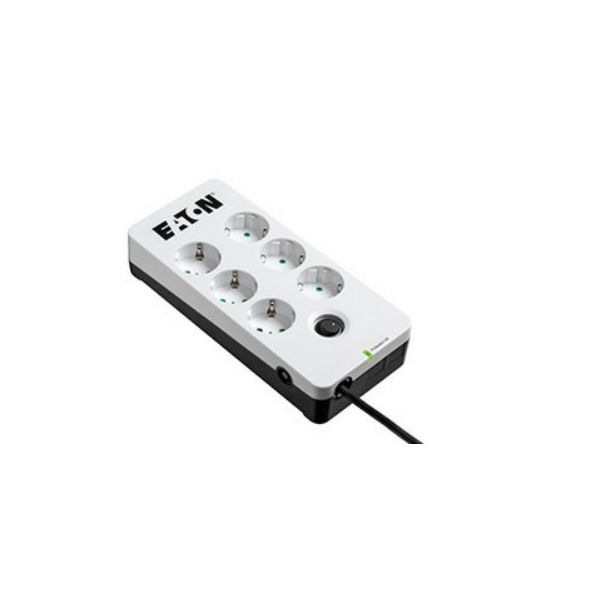

Eaton Protection Box 6 DIN, PB6D

Detaljan opis: LINK

General Topology Surge protection device Typical Application Computers, NAS, peripherals TV, Video, Hi-Fi equipment, Home cinema, etc. Internet gateways Gaming console Household goods, etc. Part Number PB6D Colour White Power Rating 10A / 2500W Dimensions (H x W x D, mm) 47.5 x 110 x 245 mm Weight (kg) 0.586 kg Warranty 2 years warranty Product standard exchange: warranty for connected equipment up to 25 000 € Electrical Input Connection DIN Plug (1)DIN Input Voltage Range 220 – 250 Vac Protection Surge protection Installation Requires earth connection Electrical Output Outlets DIN Outlet (6)DIN Output Frequency 50 / 60 Hz Power line protection Surge test conditions for IEC 61643-11 with 1.2/50μs; 8/20μs pulse T3 L+N to PE : Uoc = 6 kV; Up < 1.5 kV; In = 3 kA L to N : Uoc = 4 kV; Up < 1.5 kV; In = 2 kA Certifications & Compliance Certifications CE / EAC / CM Compliance IEC 60884-1 / IEC 61643-11 / IEC/EN 61000-6-1 / IEC/EN 61000-6-3 / NF C61-314 / VDE 06020 Quality and Environment ISO 9001, ISO 14001
