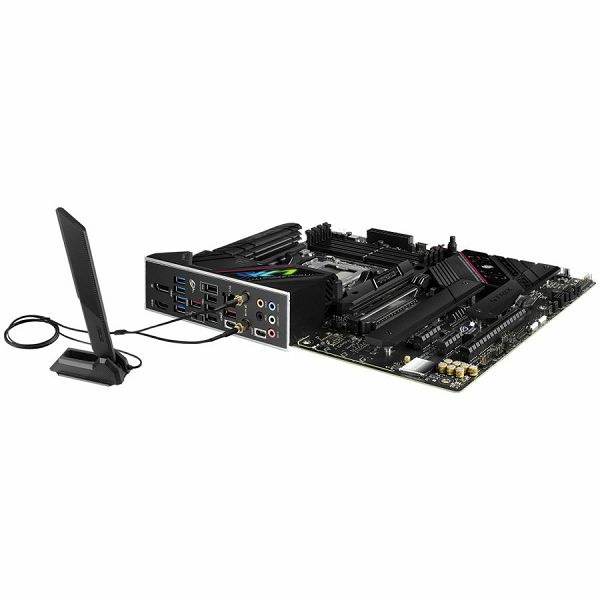

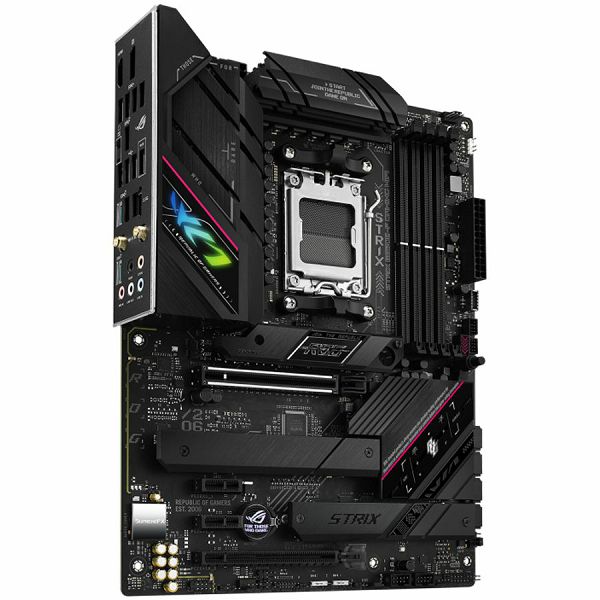

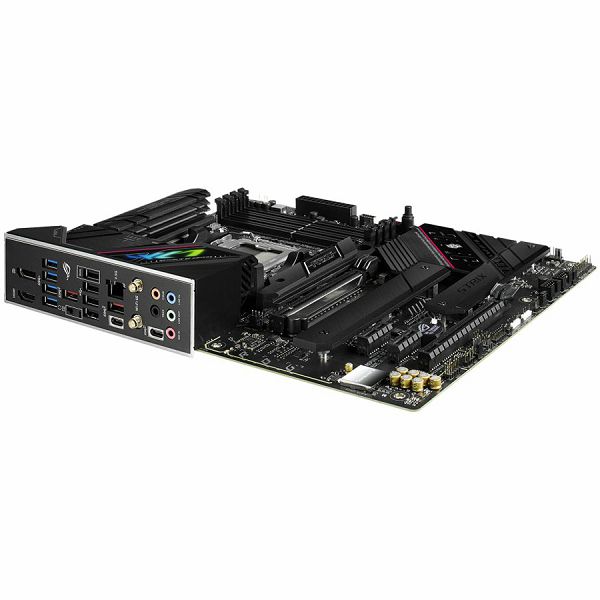

ASUS ROG STRIX B650E-F GAMING WIFI AM5 ATX gaming MB - AMD B650 4xDIMM DDR5 3xM.2 4xSATA PCIe 5.0 2.5Gb Ethernet WiFi 6E + Bluetooth 1xDisplayPort 1xHDMI with Aura Sync support

Audio Chipset: Realtek ALC4080 / Savitech SV3H712
, Audio Data Width: 32-bit
, Audio Integrated: yes
, Audio Interface: 5 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: ASUS CrashFree BIOS 3 UEFI PXE boot ASUS EZ Flash 3 256 Mb Flash ROM
, BIOS Type: AMI
, Bluetooth: Bluetooth 5.2
, Box Weight Brutto (kg): 1 kg
, Cable Included: 2 x SATA 6Gb/s Cables
, Chipset: AMD B650
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU Socket Standard: Socket AM5
, Data Link Protocol Supports: 2.5 Gbps
, Device Location: Integrated
, DisplayPort: 1
, EAN Code: 4711081944034
, Form Factor: ATX
, HDMI: 1 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: Stickers User Guide WiFi antenna
, Integrated: Storage Controller:PCI Express 5.0 x4 (1 x M.2 (Key M))Storage Controller:PCI Express 4.0 x4 (2 x M.2 (Key M))Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)Wi-Fi Controller:
, LAN Chipset: Intel i225-V
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Maximum Installable System Memory Storage Capacity: 192 GB
, Memory Features: Two DDR Channels Unbuffered OptiMem II AMD EXPO
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 5200MHz(PC5-41600)
, Memory Type: DDR5 SDRAM
, Pack Weight Brutto (kg): 1 kg
, Pack Weight Netto (kg): 1 kg
, Package Type: Box
, Packs in Box: 1
, PCI Express 4.0 x1: 2
, PCI Express 4.0 x16: 1
, PCI Express 5.0 x16: 1
, Pieces in pack: 1
, Power Connectors Type: 24+8+4 pin
, Provides Error Checking Method: ECC/Non-ECC
, Retail Packaging Net Weight Carton: 1 kg
, Retail Packaging Net Weight Plastic: 1 kg
, Supported Operating System: Microsoft Windows 11 64-bit
, Supports Central Processor Unit: AMD Ryzen 7000 Series
, USB 2.0: 4 (USB 2.0 (type A))
, USB 3.2 Gen 2 x2: 1 (USB 3.2 (type C))
, USB 3.2 Gen 2: 2 (USB 3.2 (type A)); 1 (USB 3.2 (type C))
, Wake up/Sleep: Wake on LAN
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty Validation Criteria: Serial Number
, Width (mm): 305 mm
, Wi-Fi Antenna: 1
, Wi-Fi: IEEE 802.11ax Wi-Fi 6E
