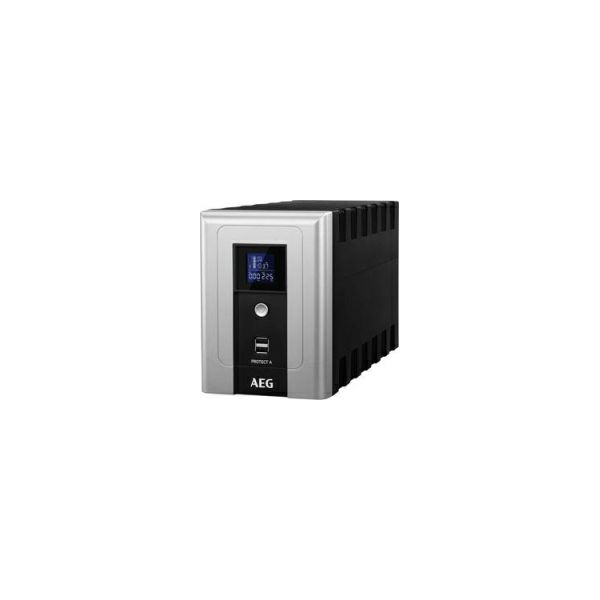

- Protect A is a uninterruptible power supply designed to provide mains power protection and battery back-up for desktop systems and network peripherals
- The internal battery provides several minutes runtime when the mains power fails (load dependent)
- The system is designed for easy "plug and play" installation
- Protect A is part of the AEG Power Solutions intelligent and energy efficient 1-phase UPS range
- The UPS features an informative front panel with two USB ports convenient for smartphone and tablet charging
TYPICAL APPLICATIONS
- Standard office applications (PCs, workstations, retail terminals, etc.)
- Network and telecom peripherals
- Industry 4.0 data logging
- Internet of Things (IoT) devices
- TVs, satellite receivers and media systems
Features
- Easy to use informative front panel LCD display
- Percentage bars, graphic indicators and meters
- On/off, cancel audible alarm
- Two USB charging ports (5 V/2 A)
- 4× battery backed up + 2× surge protected
- RJ45 Ethernet 1 Gigabit (1000 Mbit/s) surge protection
- RS232 and USB HID ports (software-free recognition)
Specifications
- Capacity: 1200VA / 720W
INPUT
- Voltage: 230 VAC
- Voltage range: 170-280 VAC
OUTPUT
- Voltage: 230 VAC
kg- Voltage regu.lation: +/-10 % (Battery mode)
- Frequency range: 50/60 Hz
- Frequency regulation: +/-1 Hz (Battery mode)
- Transfer time: Typical 4-8 ms
- Waveform: Modified sine wave
PROTECTION
- UPS protection: Discharge, overcharge and overload protection
ENVIRONMENT
- Humidity: 0%-90% RH @ 0C-40C (non-condensing)
- Noise level: Less than 40 dB
SOFTWARE
- Shutdown software: WinPower (included)/HID
BATTERY
- Type & quanitity: 12 V/7 Ah ×2
- Charging time: 4 hour recovery to 90 % capacity
- Backup time (approx. 100 W): min.
PHYSICAL
- Indication: LCD display
- Outlets: 4× battery backed up + 2× surge protected
- USB charger: DC 5.1 V/2.0 amp max.
- Communication ports: USB port (HID), 1000 Mb ethernet surge protection
- Dimensions (D×W×H): 360×139×195 mm
- Net Weight: 9.7 kg
