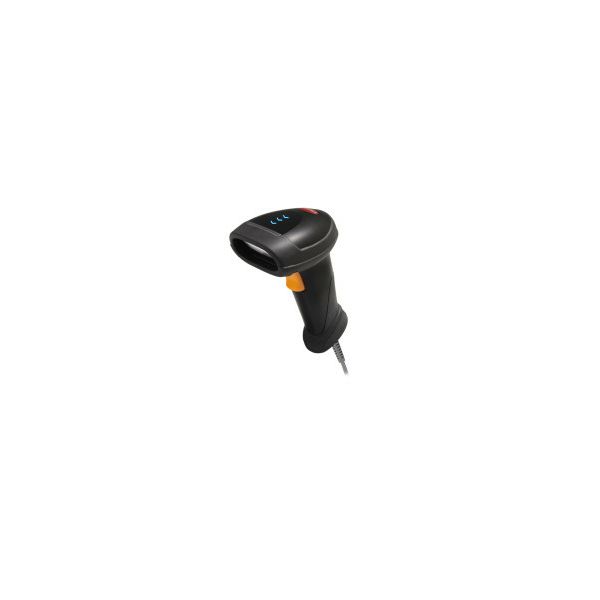

Zebex Z-3392 Plus 2D barcode čitač, USB, crni, 64585

- The Z-3392 Plus showcases versatile capabilities akin to leading market offerings. It incorporates pivotal upgrades from its precursor, boasting barcode stitching prowess, adaptable application, heightened 1D and 2D scanning efficacy, and an essential robust design tailored for rugged work settings. This scanner presents exceptional value and stands as an optimal choice for retail sector applications.

Features
• Ergonomic, rugged design
• Decode most 1D & 2D barcodes
• LED indication and programmable beeper
• Affordable high performance
• Healthcare label compliance: Supports GS1 and FMD format

Specifications
OPERATIONAL
- Aiming Element: 617nm visible LED
- Illumination Element: 6500K white LED
- Image Sensor: 1280 x 800 CMOS
- Depth of Field: Code39 (5 mil) : 50 - 150 mm
- EAN 13 (13 mil): 30 - 280 mm
- Min. Bar Width: 4mil@PCS=90%(code39)
- Field of View: 38.6°Horizontal x 24.9°Vertical
- Focusing Distance: 7.5cm
- Sensitivity: 360°
- Print Contrast: 30% UPC/EAN 100%
- Indicator: Two-color LED (blue,red)
- Programmable Operation: Programmable tone & beep time
- System Interface: RS-232, USB

PHYSICAL CHARACTERISTICS
- Dimensions H x W x L: 163.0 x 66.6 x 82.4 mm
- Weight (g): 143 g
- CableStandard: 2M straight

POWER
- Input Voltage: 5 VDC ±10%
- Operating Current: 320 mA @ 5V ( Typical )

REGULATORY
- EMC: CE EN55022 class B, FCC part 15 Class B,VCCI,BSMI
- Safety: IEC 62471 Exempt

ENVIRONMENT & SAFETY
- Operating Temperature: 0°C – 50°C (32°F – 122°F)
- Storage Temperature: -20°C – 60°C (14°F – 140°F)
- Humidity: 5% – 90% RH (non-condensing)
- Light Level: Max. 100,000 Lux (fluorescence)
- Drop Durability: Designed to withstand 1.5M drops
- Environmental Sealing: IP 42

DECODING CAPABILITY
- 1D Barcode: UPC / EAN ( UPCA / UPCE / EAN-8 / EAN-13, ISBN ( Bookland ), Code 39 , Code 32 ( Italian Pharmacode ), Code 128, Code 93, Codabar, Interleaved 2 of 5,Standard 2 of 5,lndustrial 2 of 5, Matrix 2 of 5 ( Japannese ), Code 11, Telepen, Pharmacode, Chinese post code, MSI Plessey, GS1 DataBar ( Omnidirectional, Truncated, Stacked, Stacked Omnidirectional, Limited, Expanded, Expanded Stacked )

- 2D Barcode: QR Code, Micro QR Code DataMatrix MaxiCode, Aztec, PDF417, MicroPDF417, PostNet, PLANET, Australia, Royal Post, CODABLOC F Composite Codes (CC-A, CC-B, CC-C)
