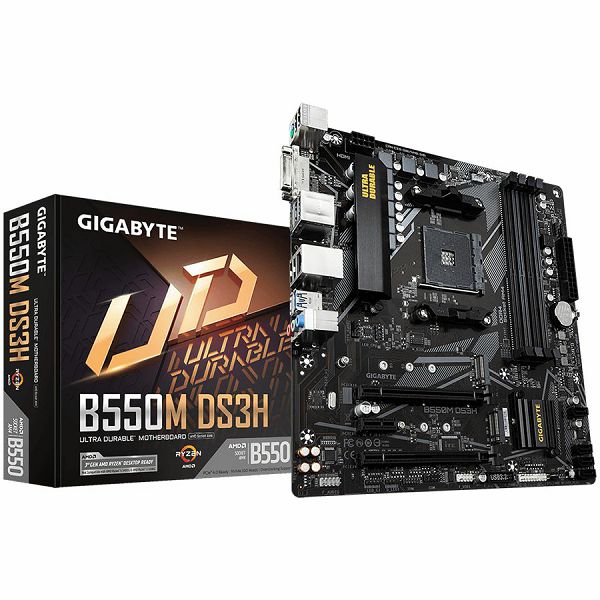

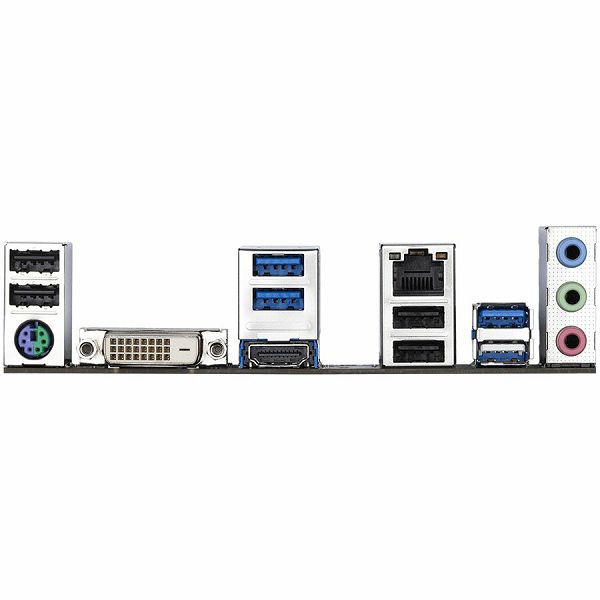

GIGABYTE MB B550 AM4 4 x DDR4 PCIe 3.0 2 x M.2 4 x SATA 1 x DVI-D port 1 x DisplayPort 1 x HDMI port Micro ATX, B550M DS3H

Audio Integrated: yes
, Audio Interface: 3 (3.5-mm minijack)
, Audio Output Mode: 7.1 Channel Surround
, BIOS Features: Gigabyte @BIOS Gigabyte Q-Flash Gigabyte Xpress Install WfM 2.0 Support Gigabyte EasyTune PnP 1.0a Support UEFI SMBIOS 2.7 Support 128 Mb Flash ROM DMI 2.7 Support ACPI 5.0 Support
, BIOS Type: AMI
, Box Weight Brutto (kg): 0.93 kg
, Chipset: AMD B550
, Compliant Audio Standards: High Definition Audio
, CPU Maximum Quantity Supports: 1
, CPU podnožje: Socket AM4
, Data Link Protocol Supports: Gigabit Ethernet/Fast Ethernet/Ethernet
, Device Location: Integrated
, DisplayPort: 1
, DVI: 1 (DVI-D)
, Form Factor: Micro ATX
, HDMI: 1 (HDMI (Type A))
, Height (mm): 244 mm
, Included Accessories: Quick Start Guide
, Integrated: Storage Controller:Supports: Level 0, Level 1, Level 10SATA III-600 (4)Storage Controller:PCIe 4.0 x4/SATA (1 x M.2 (Key M))Storage Controller:PCIe 3.0 x2/SATA (1 x M.2 (Key M))
, LAN Integrated: yes
, LAN: 1 (RJ-45)
, Mainboard Features: Fan Speed Control
, Maximum Installable System Memory Storage Capacity: 128 GB
, Memory Features: Two DDR Channels Unbuffered Dual Rank Single Rank XMP
, Memory Form Factor: DIMM 288-pin
, Memory Slot Total Quantity: 4
, Memory Speed: 2133MHz(PC4-17000) 2400MHz(PC4-19200) 2666MHz(PC4-21300) 2800MHz(PC4-22400) 2933MHz(PC4-23400) 3000MHz(PC4-24000) 3200MHz(PC4-25600)
, Pack Weight Brutto (kg): 0.93 kg
, Pack Weight Netto (kg): 0.931 kg
, Package Type: Retail
, Packs in Box: 1
, PCI Express 3.0 x1: 2
, PCI Express x16: 1
, Pieces in pack: 1
, Provides Error Checking Method: ECC
, PS/2: 1
, Retail Packaging Net Weight Carton: 0.01 kg
, Retail Packaging Net Weight Plastic: 0.01 kg
, Software Included: Norton Internet Security (OEM version)
, Supported Operating System: Microsoft Windows 10 64-bit Microsoft Windows 11 64-bit
, Supports Central Processor Unit: AMD Ryzen Series 3rd Generation AMD Ryzen Series 4th Generation AMD Ryzen Series 5th Generation
, USB 2.0: 4 (USB 2.0 (type A))
, USB 3.2 Gen 1: 4 (USB 3.2 (type A))
, Video Controller Integrated: yes
, Vrsta memorije: DDR4 SDRAM
, Warranty Products Returnable: Yes
, Warranty Term (month): 36 month(s)
, Warranty validation Criteria: Serial Number
, Width (mm): 244 mm
