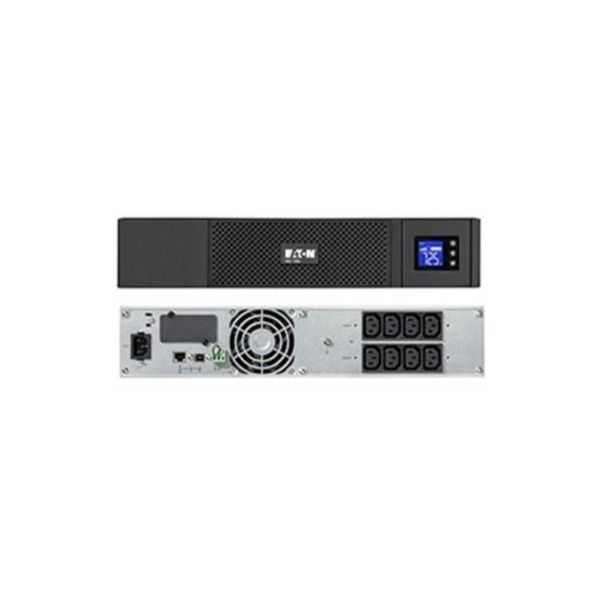

Eaton 5SC 1500i Rack2U, 1500/1050, 8xIEC/10A, 5SC1500IR

Detaljan opis: LINK

General Topology Line-interactive high frequency with booster + fader, pure sinewave output Configuration Rack 2U Part Number 5SC1500IR Color Black Rating (VA/Watts) 1500/1050 Dimensions (H x W x D, mm) 86.2 x 440 x 405 Weight (kg) 17.78 Warranty 2 years Electrical Input Connection (1) IEC-320-C14 IEC C14 Input Voltage Range 184V-276V Nominal Voltage 230V Input frequency Range Without Using Batteries 45–55Hz (50Hz system), 55–65Hz (60Hz system) Electrical Output Voltages 230V (+6/–10 %) (Adjustable to 220V/230V/240V) Outlets (8) IEC-320-C13 IEC C13 Output Frequency 50/60Hz +/–0.1 % (autosensing) Battery Battery Management ABM®, Automatic battery test, deep discharge protection Communications Communication Ports 1 USB port + 1 RS232 serial port and relay contacts (USB and RS232 ports cannot be used simultaneously) + 1 mini terminal block for remote ON/OFF and Remote Power Off Communication Slot 1 slot for Network management card or Relay card Environmental & Standards Audible Noise <45 dB Operating Temperature 0 to 40°C Safety markings IEC/EN 62040-1, UL 1778 EMC Markings IEC/EN 62040-2 Approvals CE, CB report (TUV)
